Main technical parameters:

1.Power Supply ：Ac380v three-phase four-wire 50Hz

2.Total power：1.5KW

3.Production capacity：40-70 boxes/min

4.Gas consumption：20m3/h（pressure 0.5-0.7mpa）

5.Packaging material：quality of cartons;250-450/m2

                                   （depending on the size of the carton）

6.Specification：Minimum size：（LxWxH)100x20x15mm

                           Maximum size：（LxWxH)220x60x50mm

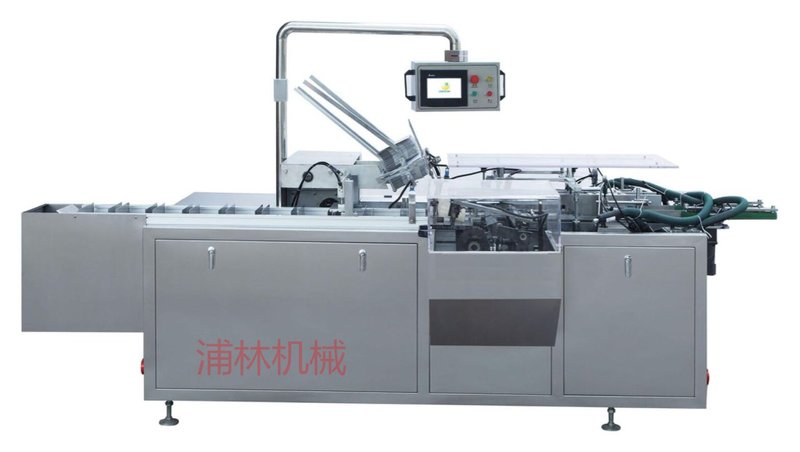

Horizontal multifunctional full-automatic cartoning machine is a kind of efficient packing equipment which integrates the functions of automatic loading, packing and sealing, etc. It is suitable for the rapid packaging of various products. The device has the following features:

1. Automatic feeding system, significantly improve the production speed.

2. Diversified functional design, can adapt to different sizes of boxes.

3. Accurate packaging technology to ensure that products are placed neatly.

4. Automatic sealing mechanism to enhance the sealing of packaging.

5. Convenient man-machine interface, simplify the operation process.

6. The self-diagnosis function facilitates quick fault location and troubleshooting.
